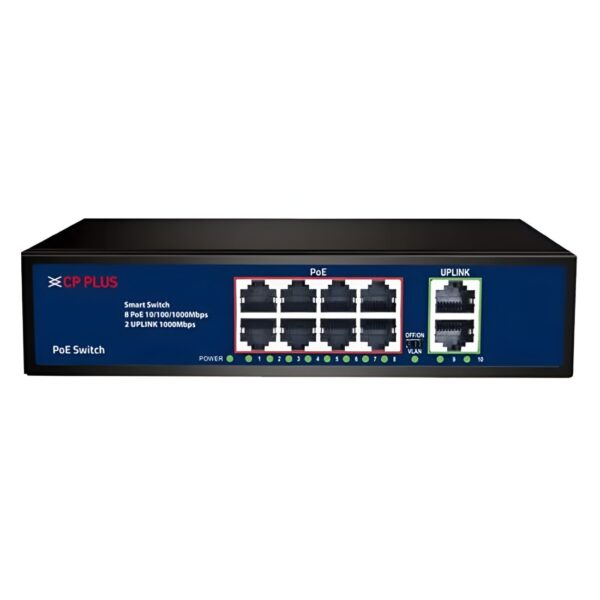

CP Plus 8 Port Poe Switch (8 Giga Poe + 2 Giga Uplink)
₹4,420.00
- Model:CP-DNW-GPU8G2-96-V4
- Warranty:2 Years from CPPLUS Service Center
- Product URL:View Product
Description
| Specification | Details |
|---|---|
| Uplink Ports | 2, 1000Mbps; Transmission Distance: 0-100m |
| Network Protocol | IEEE802.3i/802.3u/802.3x/802.3af/802.3ab |
| Switch Capacity | 20Gbps Full duplex |
| Packet Forwarding Rate | 1.488Mpps/port |
| PWR (Power Indicator) | Light on: Powering, Light off: No Power |
| Poe Ports | 8, 1000Mbps; RJ45 ports; Max. 30W Output of Single Poe Port |
| Network Port | 10 |
| MAC Address Table | 2K |
| Poe Standard | IEEE802.3af, IEEE802.3at |
| Poe Power Supply | 1/2(+), 3/6(-) |
| Transmission Distance | 0-100m/1000Mbps or Port 7-8 Max. 250m/10Mbps via Cat.5e or more under Extend mode |
| Poe Power Budget | 96W |
| Poe Feature | All ports support MDI/MDIX |
| ESD | Air discharge: 8KV; Contact discharge: 6KV |
| Surge Protection | Common mode/RJ45 port: 4KV Differential mode/RJ45 port: 2KV Common mode/Power board: 2KV Differential mode/Power board: 2KV |
| VLANs | Support |
| RJ-45 ACT Indicator | Green light off: Link is disconnected Green light on: Link is connected Green light flash: Data Transmitting |
| Watchdog | Support |
| Forwarding Mode | Store-and-forward |
| Power Source | Built-in Power Supply, Input: 100-240V AC, 50/60Hz |
| Power Consumption | <5W |
| Operating Temperature | -10°C ~ 50°C |
| Storage Temperature | -40°C ~ 70°C |
| Working Humidity | 10%-95%, non-condensing |
| Dimensions | 200mm x 118mm x 44mm |
| Color | Black |
| Weight | 0.8Kg (not include input cable & packaging) |
