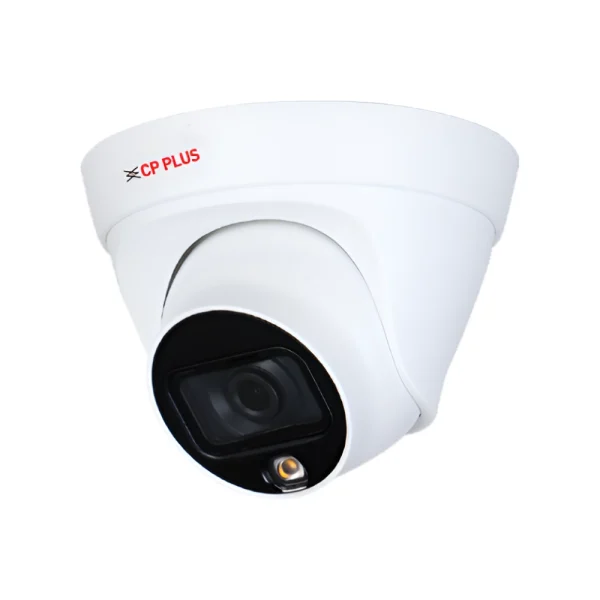

CP PLUS CP-UNC-DA21L3C-L 2MP IP DUAL LIGHT DOME CAMERA COLOR+MIC

CP PLUS CP-UNC-DA21L3C-L 2MP IP DUAL LIGHT DOME CAMERA COLOR+MIC

₹3,430.00

  • 1/2.8″ 2MP PS CMOS Image Sensor (0.9071 centimeter)
  • Max. 2MP (1920 × 1080) @25/30 fps
  • Instastream, H.265 and H.264 dual-stream encoding
  • DWDR, Day/Night (ICR), 3D DNR, ROI, AWB, AGC, BLC, HLC
  • 3.6mm fixed lens (2.8mm Optional)
  • Support Built-in Mic
  • Support Motion Detection
  • Warm Light Range of 30 Mtrs, IP67, PoE
  • Mobile Software: iCMOB, gCMOB
  • CMS Software: KVMS Pro Lite

Out of stock

Categories: , Brand:

Description

Image Sensor 1/2.8″ 2MP PS CMOS Image Sensor (0.9071 centimeter)
Minimum Illumination 0.005 lux@F1.6 (Color, 30 IRE), 0.0005 lux@F1.6 (B/W, 30 IRE), 0 lux (IR on)
Effective Pixels 1920 (H) × 1080 (V)
Angle Adjustment Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360°
Shutter Speed Auto/Manual 1/3 s–1/100,000 s
White Balance Auto, Natural, Street lamp, Outdoor, Manual, Regional custom
RAM 64 MB
ROM 16 MB
DORI Distance Lens 3.6mm: 58.9m (Detect), 23.6m (Observe), 11.8m (Recognize), 5.9m (Identify) Lens 2.8mm: 44.1m (Detect), 17.5m (Observe), 8.8m (Recognize), 4.4m (Identify)
Gain Control (AGC) Auto/Manual
Lens Type Fixed-focal
Max. Aperture F1.6
Lens Mount M12
Close Focus Distance 33.6 mm: 1.3 m, 2.8 mm: 0.8m
Lens 3.6mm Fixed Lens (2.8mm Optional)
Video Compression H.265, H.264, H.264H, H.264B, MJPEG (Only supported by the sub stream)
S/N Ratio >56dB
Back Light Compensation BLC/ HLC/ DWDR
Angle of view 3.6 mm: H: 87°, V: 44°, D: 105°; 2.8 mm: H: 103°, V: 55°, D: 123°
Encode Strategy Instastream, H.264+
Stream Capability 2 streams
Frame Rate Main stream: 1920 × 1080@(1–25/30 fps) sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps
Resolution 2M (1920×1080), 1.3M (1280×960), 1M (1280×720), D1 (704×576 / 704×480), VGA (640×480), CIF (352×288 / 352×240)
Motion Detection OFF/ON (4 areas, rectangular)
Privacy Mask 4 areas
Noise Reduction 3D DNR
ROI Support (4 areas)
Audio Compression G.711a, G.711Mu, PCM, G.726, AAC
Bit Rate Control CBR/VBR
Bit Rate H.265: 12 kbps–4096 kbps, H.264: 32 kbps–4096 kbps
Human body Detection Support
Protocol IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, Multicast, ICMP, IGMP, ONVIF (Profile S; Profile T), CGI
Intelligent Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
SDK and API Support
Ethernet RJ-45 (10/100Base-T)
Day/Night Color/B/W
Alarm Event Network disconnection, IP conflict, illegal access, motion detection, video tampering, audio detection, security exception, SMD (human)
User/ Host 6 Users (Total bandwidth: 24 M)
Cyber Security Video encryption, Configuration encryption, Digest, WSSE, Account lockout, Security logs, Generation and importing of CA certification, HTTPS, Trusted boot, Trusted execution, Trusted upgrade
Mirror Function Support
Browser IE, Chrome, Firefox
smart phone iPhone, iPad, Android Phone
Iris Control Fixed
IR Control Auto, Manual
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)
IR Number 1 (Multi-core (IR + warm) light)
Audio Built-in Mic
Smart IR Support
IR IR Range of 30 Mtr.
Warm Light Distance Warm Light Range of 30 Mtr.
Power Source 12 VDC/PoE (802.3af)
Power Consumption Basic: 1.4 W (12 VDC), 2.2 W (PoE); Max.: 3.3 W (12 VDC), 4.4 W (PoE) (H.265 + intelligence on + warm light intensity)
Weatherproof Standard IP67
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity ≤95% (RH), non-condensing
Dimension 85.5mm × 109mm
Casing Plastic
Weight 0.25kg
